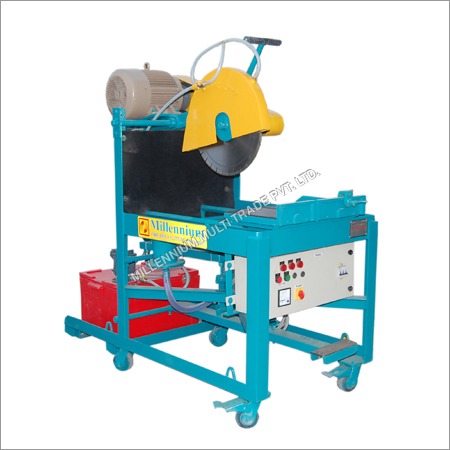

Refractory Brick Cutting Machine

Product Description

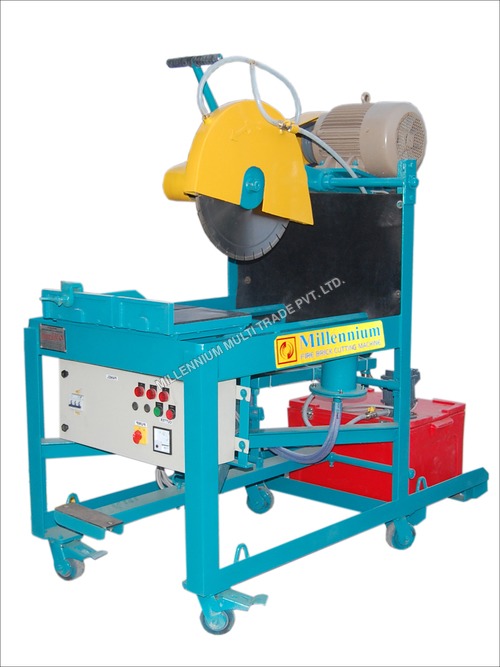

Refractory Brick Cutting Machine

Backed by technologically updated infrastructure and a team of experienced professionals, we are manufacturing, supplying and exporting Refractory Brick Cutting Machine. These machines are manufactured using premium quality raw material ensuring reliability and durability. We are counted as one of the leading Manual Refractory Brick Cutting Machine Exporters from India. Offered machines matched the international quality standards and so are highly demanded in various parts of the world. These machines are reckoned for their strict construction, operational accuracy, easy usage, low maintenance and durability. Available at market leading prices, Brick Cutting Machine is an highly efficient machine to cut down bricks in various sizes and shapes

Application area:

• Cement Industry
• Ceramic Industry
• Steel Industry
• Petrochemical Industry

• Sr No	PARAMETER	SPECIFICATIONS OF MBCM
  1	MODEL	MBCM-7.5 # SIZE OF TABLE: 30-W X 39-L X 33- H INCH
  2	CAPACITY	CAN CUT JOB UP TO W-600 X L-300 X H-230 MM
  3	MOTOR	- 7.5 HP, TEFC 415 Volts /3 Phase / 50 Hz
  4	MOTOR MAKE	- ABB / BBL / SIEMENS
  5	STARTER	- DOL ( WITH OVERLOAD RELAY )
  6	STARTER MAKE	REPUTED COMPANY
  7	CUTTING WHEEL FIT	16 & 18 INCH
  8	FLANGES	- TO SUIT ABOVE WHEEL
  9	WHEEL GUARD	- TO SUIT ABOVE WHEEL
  10	WHEEL HEIGHT	- CUTTING HEIGHT CAN BE ADJUSTED
  		1) 1 SLOT
  		2) SPRING LOADED PIN WITH OPERATING KNOB
  11	SPINDLE HOUSING	- GROUND SPINDLE ASSEMBLED IN DOUBLE LABYRINTH SYSTEM.
  		- ALL ROTATING PARTS ARE DYNAMICALLY BALANCED
  12	TROLLY	ALUMINIUM ROLL-O-MATIC SLIDING TROLLY
  		TROLLY WITH SELF GRIPPING RUBBER
  13	TROLLY	500 MM X 300 MM
  14	PANEL BOX	MCB SWITCH, CONTACTOR WITH OVERLOAD RELAY,SPP,AM.METER,VOLT MTR.
  15	OTHER FACILITIES	BELT TENSION DEVICE, REAR SPLASH SCREEN, SPINDLE LOCK
  16	TOOL BOX	- SPANNER FOR DIAMOND SAW
  17	GUARANTEE	12 MONTH WITHOUT ELECTRICAL
  18	EXTRA ACCESSORIES	COOLANT PUMP 00.25 HP THREE PHASE/WATER TANK FREE OF COST
  19	EXTRA ACCESSORIES	MACHINE COVER FREE OF COST
  20	EXTRA ACCESSORIES	MOTOR GUARD FOR DUST FREE OF COST
  21	EXTRA ACCESSORIES	ADJUSTABLE MEASUREMENT DEVICE FOR CUTTING BRICKS FREE OF COST
  FRAME		MS ANGEL[65/75, 06 MM THICKNESS]
  LENGTH OF BED		39 INCH [ 985 MM ]
  WIDTH OF BED		30 INCH [ 760 MM ]
  HEIGHT OF TABLE		32 INCH [ 812 MM ]
  DEPTH OF CUT
  ONE PASS		05.0 INCH [ 150 MM ]
  TWO PASS		10.0 INCH [ 280 MM ]
