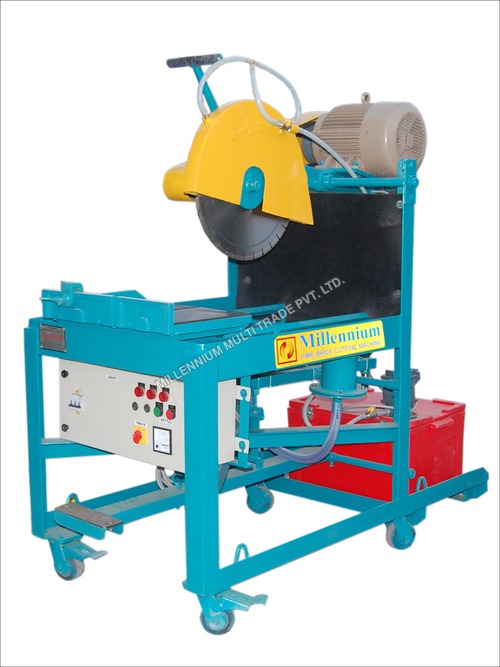

Brick Cutting Machine

Product Description

Brick Cutting Machine

Backed by technologically updated infrastructure and a team of experienced professionals, we are manufacturing, supplying and exporting Brick cutting Machine. These machines are manufactured using premium quality raw material ensuring reliability and durability. We are counted as one of the leading Manual Brick Cutting Machine Exporters from India. Offered machines matched the international quality standards and so are highly demanded in various parts of the world. These machines are reckoned for their strict construction, operational accuracy, easy usage, low maintenance and durability. Available at market leading prices, Brick Cutting Machine is an highly efficient machine to cut down bricks in various sizes and shapes.

Application area:

• Cement Industry
• Ceramic Industry
• Steel Industry
• Petrochemical Industry

Technical Specification

Capacity	50 Piece/Hour
Surface Finish	Paint Coated
Bed Size	525 x 325 mm
Voltage(Volt)	220 V
Table Dimension	750 x 975 x 825 mm
Electric Motor	7.5 HP
Frequency	50 Hz
Cutting Speed	Max 120 m/min
Material	Mild Steel

Technical Details:

Sr No	PARAMETER	SPECIFICATIONS OF MBCM
1	MODEL	MBCM-7.5 # SIZE OF TABLE: 30-W X 39-L X 33- H INCH
2	CAPACITY	CAN CUT JOB UP TO W-600 X L-300 X H-230 MM
3	MOTOR	- 7.5 HP, TEFC 415 Volts /3 Phase / 50 Hz
4	MOTOR MAKE	- ABB / BBL / SIEMENS
5	STARTER	- DOL ( WITH OVERLOAD RELAY )
6	STARTER MAKE	REPUTED COMPANY
7	CUTTING WHEEL FIT	16 & 18 INCH
8	FLANGES	- TO SUIT ABOVE WHEEL
9	WHEEL GUARD	- TO SUIT ABOVE WHEEL
10	WHEEL HEIGHT	- CUTTING HEIGHT CAN BE ADJUSTED
		1) 1 SLOT
		2) SPRING LOADED PIN WITH OPERATING KNOB
11	SPINDLE HOUSING	- GROUND SPINDLE ASSEMBLED IN DOUBLE LABYRINTH SYSTEM.
		- ALL ROTATING PARTS ARE DYNAMICALLY BALANCED
12	TROLLY	ALUMINIUM ROLL-O-MATIC SLIDING TROLLY
		TROLLY WITH SELF GRIPPING RUBBER
13	TROLLY	500 MM X 300 MM
14	PANEL BOX	MCB SWITCH, CONTACTOR WITH OVERLOAD RELAY,SPP,AM.METER,VOLT MTR.
15	OTHER FACILITIES	BELT TENSION DEVICE, REAR SPLASH SCREEN, SPINDLE LOCK
16	TOOL BOX	- SPANNER FOR DIAMOND SAW
17	GUARANTEE	12 MONTH WITHOUT ELECTRICAL
18	EXTRA ACCESSORIES	COOLANT PUMP 00.25 HP THREE PHASE/WATER TANK FREE OF COST
19	EXTRA ACCESSORIES	MACHINE COVER FREE OF COST
20	EXTRA ACCESSORIES	MOTOR GUARD FOR DUST FREE OF COST
21	EXTRA ACCESSORIES	ADJUSTABLE MEASUREMENT DEVICE FOR CUTTING BRICKS FREE OF COST
FRAME		MS ANGEL[65/75, 06 MM THICKNESS]
LENGTH OF BED		39 INCH [ 985 MM ]
WIDTH OF BED		30 INCH [ 760 MM ]
HEIGHT OF TABLE		32 INCH [ 812 MM ]
DEPTH OF CUT
ONE PASS		05.0 INCH [ 150 MM ]
TWO PASS		10.0 INCH [ 280 MM ]

Enhance Industrial Brick Cutting Productivity

Our automatic Brick Cutting Machine is engineered for maximum efficiency in industrial environments. Its sturdy design and high voltage capacity ensure optimal performance, even during intensive operations. This machine streamlines the brick cutting process, making it suitable for large-scale construction projects and manufacturing plants seeking increased throughput and precision.


Comprehensive Support from a Trusted Network

Distributed, exported, and serviced by reputable companies across India, this blue brick cutting machine comes with a one-year warranty and accessible after-sales support. Whether you purchase as a manufacturer, supplier, or trader, our partners ensure smooth installation and maintenance. Benefit from prompt service provider networks that keep your equipment running efficiently.
