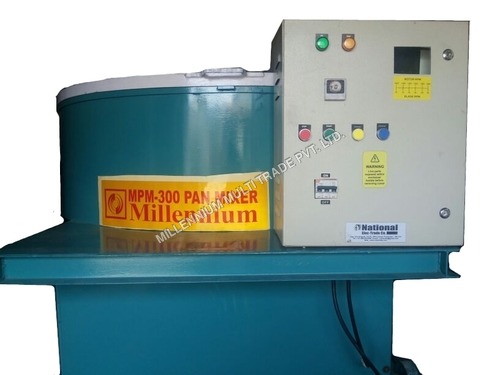

Pan Mixer With Panel Board

Product Description

Being a renowned enterprise in this domain, we have been engaged in manufacturing, exporting and supplying wide gamut of Pan Mixer With Panel Board. This mixer is widely used in construction industry for mixing concrete, sand, mortar, water etc in a hassle free manner. Manufactured under the stern control of skilled professionals, this mixer is certified under predefined industry standards. This Pan Mixer With Panel Board can be bought from us at competitive prices.

Key Points of Pan Mixer With Panel Board:

Long functional life

Compact size

Rust proof

Low power consumption

Technical Specification

Capacity	500 kg
Material	Mild Steel
Automation Grade	Semi-Automatic
Colour	Green
Power	25 HP
Weight	750kg
Voltage	415 V
Drum Diameter	1500x450 mm
Pan Diameter	900 mm
Batch Capacity (Kilogram)	200kg
Thickness	22mm
Base Plate Thickness	4mm
Motor Speed	1440 RPM

Specifications of Pan Mixer With Panel Board:

Base Plate MS : 10 mm Thick

Side Wall : 6mm Thick

Unique power saving Reduction Gear Unit

ElEC. Motor : 05 TO 25.0 HP/ 1440 R. P.M

Starter with RCB

4 FIXED BALDE

Very Easy Manual Discharge Door.

Trolley Wheel on four legs.[optional]

Heavy Frame Structure with Greed.

ICI AUTO Painted

Model

MPM-100

MPM-200

MPM-300

MPM-400

MPM-500

Capacity

200 KGS

300 KGS

500 KGS

Pan Dia

1000 MM

1200 MM

1500 MM

1650 MM

1800 MM

Pan Height

450 MM

500 MM

Ele. Motor

05/7.5 HP

7.5/10 HP

10/12.5/15 HP

15/20 HP

20/25 HP
