Pan Mixer Machine

Get a Price/Quote

Product Details:

Diameter 1200 mm
Torque High torque gearbox driven
Shape Round
Phase Three Phase
Product Type Pan Mixer Machine
General Use Mixing construction materials like concrete, mortar, and fly ash bricks
Material Mild Steel
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Pan Mixer Machine Product Specifications

Torque High torque gearbox driven
QC System In-house Quality Control
Material Mild Steel
Surface Treatment Paint Coated
Control System Manual
Feature Heavy duty, wear-resistant lining, easy discharge, robust construction
Color Blue / Yellow (customizable)
Phase Three Phase
Capacity 500 kg per batch
Drawing Available on request
General Use Mixing construction materials like concrete, mortar, and fly ash bricks
Voltage 415 V
Touch Screen No
Product Type Pan Mixer Machine
Shape Round
Type Industrial Mixer
Dimension (L*W*H) 1600 mm x 1400 mm x 1300 mm
Tolerance 2 mm
Automatic Semi-Automatic
Weight (kg) 800 kg
Diameter 1200 mm
Computerized No

Product Description

Empowered by vast infrastructural facilities and profound experience in this industry, we are successfully catering to the high demands of our valued patrons by manufacturing, supplying and exporting Pan Mixer Machine. These mixtures are appreciated in world market for their high performance and excellent precision. Offered mixtures are highly demanded in different industries around the globe and so we manufacture Pan Mixer Machine in strict compliance with international guidelines. Valued patrons can avail this mixtures from us at nominal prices, ensuring timely door-step delivery.

Applications of Pan Mixer Machine:

Steel Industry
Petrochemical Industry
Refinery Industry
Cement Industry

Technical Specification

Capacity	500 kg
Material	Mild Steel
Automation Grade	Semi-Automatic
Colour	Green
Power	25 HP
Weight	750kg
Voltage	415 V
Drum Diameter	1500x450 mm
Pan Diameter	900 mm
Batch Capacity (Kilogram)	200kg
Thickness	22mm
Base Plate Thickness	4mm
Motor Speed	1440 RPM

Specifications of Pan Mixer Machine :

Base Plate MS : 10 mm Thick
Side Wall : 6mm Thick
Unique power saving Reduction Gear Unit
ElEC. Motor : 05 TO 25.0 HP/ 1440 R. P.M
Starter with RCB
4 FIXED BALDE
Very Easy Manual Discharge Door.
Trolley Wheel on four legs.[optional]
Heavy Frame Structure with Greed.
ICI AUTO Painted

Model	MPM-100	MPM-200	MPM-300	MPM-400	MPM-500
Capacity	200 KGS	200 KGS	300 KGS	500 KGS	500 KGS
Pan Dia	1000 MM	1200 MM	1500 MM	1650 MM	1800 MM
Pan Height	450 MM	450 MM	450 MM	500 MM	500 MM
Ele. Motor	05/7.5 HP	7.5/10 HP	10/12.5/15 HP	15/20 HP	20/25 HP

Efficient and Reliable Mixing Solution

This Pan Mixer Machine excels in blending a variety of construction materials, thanks to its hardy 4-arm blade system and wear-resistant liners. Its stationary design and robust MS chassis guarantee durability and steady operation, making it an ideal choice for continuous industrial use.

Precision and Safety Combined

Operating with a noise level under 75 dB, this mixer incorporates safety features such as overload protection and protective guards. The manual control system ensures operational simplicity, while the heavy-duty structure withstands rigorous usage, providing safe and precise mixing with 2 mm tolerance.

Customizable and Supportive Service

Not only can customers choose from blue or yellow paint finishes, but they also benefit from comprehensive on-site after-sales service and readily available spare parts. Detailed drawings are available upon request, reinforcing commitment to customer satisfaction and operational transparency.

FAQs of Pan Mixer Machine:

Q: How does the manual discharge system work on the Pan Mixer Machine?

A: The mixer features a bottom door manual discharge, allowing operators to easily and safely release the mixed material by manually opening the discharge door once mixing is complete.

Q: What applications is the Pan Mixer Machine suitable for?

A: This machine is designed for a wide range of uses including mixing concrete, mortar, fly ash bricks, paver blocks, and color mixing, making it versatile for various construction projects.

Q: What safety measures are incorporated into this pan mixer?

A: The mixer is equipped with overload protection and strategically placed safety guards around moving parts to protect operators during mixing and discharge operations.

Q: Where is this mixer typically installed and operated?

A: Since it is a stationary unit with a heavy-duty chassis, the Pan Mixer Machine is generally installed at construction sites, manufacturing facilities, or block/brick plants where consistent and reliable mixing is necessary.

Q: What is the benefit of using replaceable liner plates in the mixing blades?

A: Replaceable liner plates extend the mixers operational life by preventing excessive wear on the mixing arms. When liners wear down, they can be conveniently swapped out rather than replacing the entire blade assembly.

Q: What after-sales support and spare parts services are provided?

A: On-site support and a full range of spare parts are available to maintain, repair, and optimize the performance of the pan mixer, ensuring minimal downtime and continued productivity.

Q: How much material can the mixer handle in one batch and what is its motor power?

A: The pan mixer has a capacity of 500 kg per batch and operates with a high-torque, 7.5 HP electric motor for efficient mixing of dense construction materials.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Pan Mixture' category

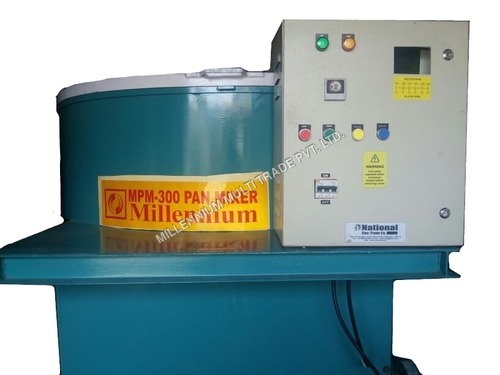

Pan Mixer With Panel Board Price : 250000.0 INR/Piece Minimum Order Quantity : 10 Color : Sea Blue Warranty : 1 Year Material : Steel Alloy Feature : High Efficiency Product Type : Pan Mixer With Panel Board Voltage : 415 Volt (v) General Use : Industrial Computerized : No Weight (kg) : 750 Kilograms (kg) Automatic : Yes
